Mean Well Mean Well logo

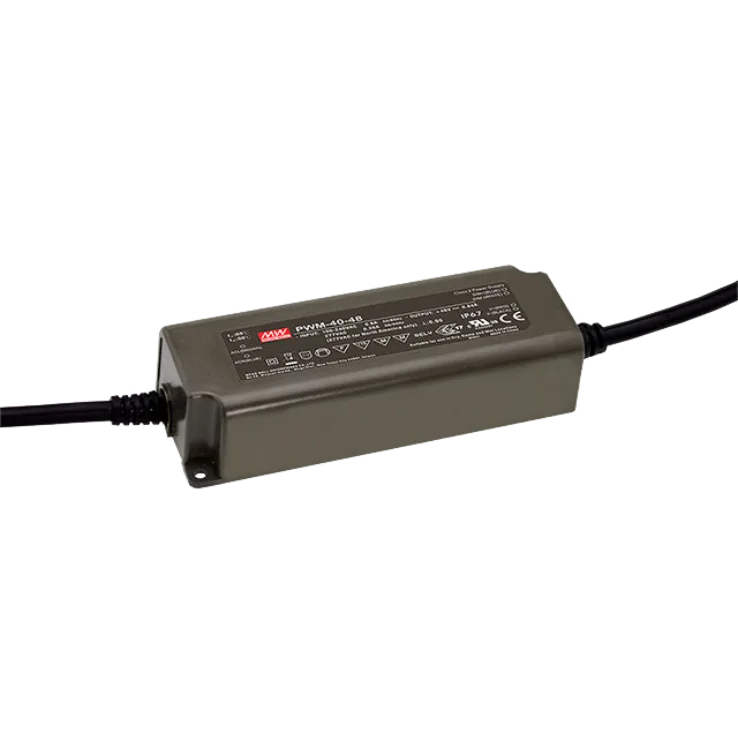

PWM-40 Series 0-10V Dimmable Constant Voltage LED Drivers 40W

Download Datasheet
Models:
  • PWM-40-12
  • PWM-40-24
  • PWM-40-36
  • PWM-40-48
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

PWM-40 Series Features:

Universal AC input / Full range (up to 305VAC)

Built-in active PFC function

Constant voltage PWM style output

Built-in 3 in 1 dimming function (0-10Vdc or PWM signal or resistance)

Dimming range : 0 - 100%

High efficiency up to 90%

Protections: Short circuit / Over load / Over voltage / Over temperature

Class II power unit, no FG

Class 2 power unit

Suitable for dry / damp / wet locations

No load power consumption <0.5W

5 years warranty

Wattage 40 40 40 40
Output Voltage 12 24 36 48
Output Voltage Options Single Single Single Single
Dimensions 150x 53x 35 150x 53x 35 150x 53x 35 150x 53x 35
Working Temperature -10~+60°C
Safety Standards UL8750, CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved.
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge L-N: 2KV), criteria A
