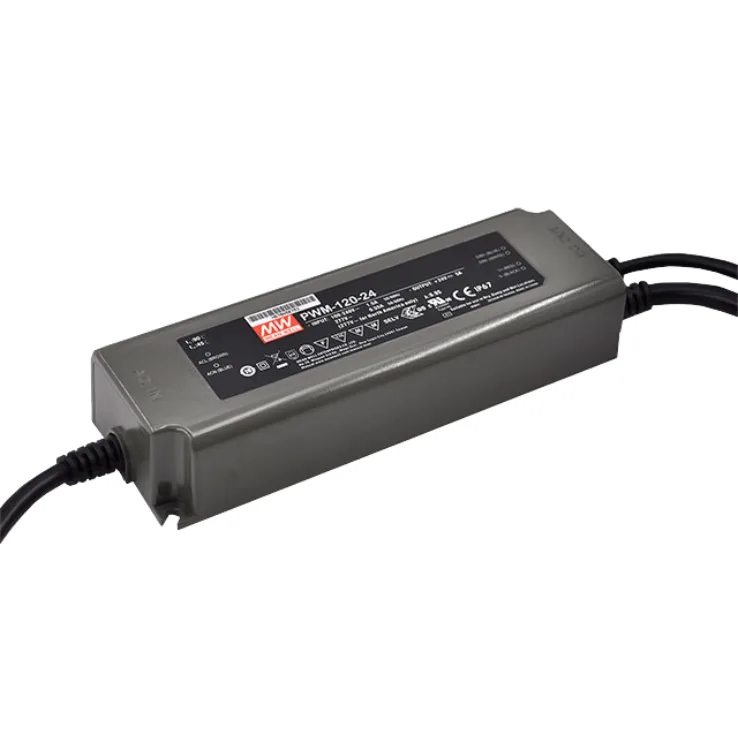

PWM-120-DA2 Series Constant Voltage LED Drivers 120W

Models:	PWM-120-12DA2 PWM-120-24DA2
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

PWM-120-DA2 Series Features:

PWM-120 DALI 2 series is a DALI Dimmable LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.

Fully compatible with both DALI2 and DALI.

Features:

Constant voltage PWM style output
Emergency lighting application is available according to IEC61347-2-13
Built-in active PFC function and class II design
No load power consumption <0.5W/standby power consumption <0.5W(DA/DA2-type)
Fully encapsulated with IP67 level
Function: 3 in 1 dimming (dim-to-off); DALI/DALI 2.0
Minimum dimming level 0.2% for DALI type
Typical lifetime >50000 hours and 5 years warranty

Spec	PWM-120-12DA2	PWM-120-24DA2
Wattage	120	120
Input Voltage	90-305VAC, 127-431VDC	90-305VAC, 127-431VDC
Output Current	10A	5A
Output Voltage	12V	24V
Dimensions	1916337.5mm	150x 53x 35
Working Temperature	-40~+85°C
Safety Standards	UL8750 (typle"HL")(except for DA-type), UL879 (for 12V,24V Blank Type Only), CSA C22.2 NO.250.13-12; ENEC EN61347-1, EN61347-2-13 independant, EN62384, IP67, BIS IS15885 (for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14 approved; Design refer to EN60335-1; According to EN61347-2-13 appendix J suitable for emergency installations
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
