| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Voltage LED Drivers |

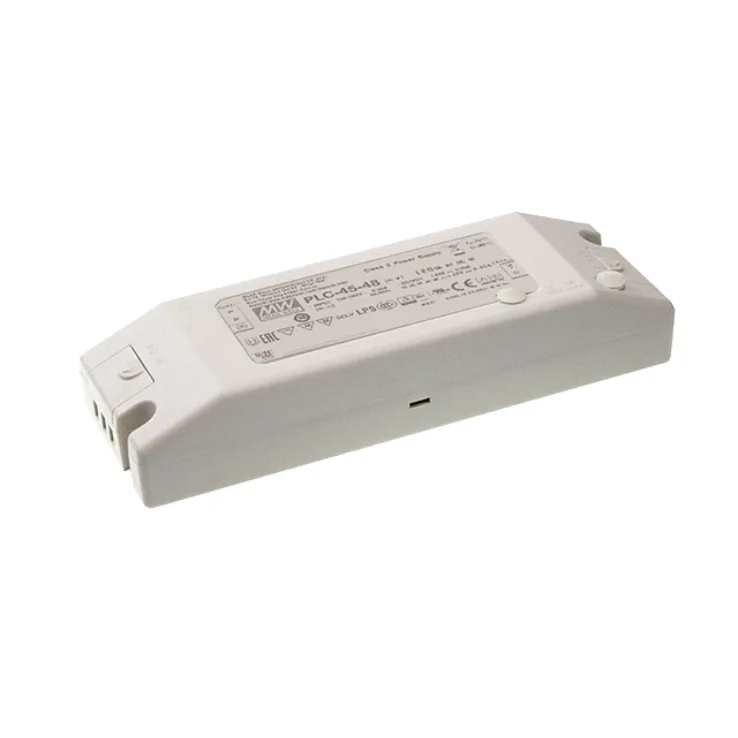

PLC-45-48 is an LED power supply with adjustable output voltage and current level and also has built-in constant current limiting circuit
Protections: short circuit/ over load/ over voltage/ over temperature
Other features: Universal AC input / Full range, fully isolated plastic case with terminal block style of I/O, built-in active PFC function, comply with EN61000-3-2 class C ( ≥75% load), UL1310 class 2 power unit, cooling by free air convection, 100% full load burn-in test, high reliability, suitable for LED lighting and moving sign applications, compliance to worldwide safety regulations for lighting and pass LPSo;?
| Wattage | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Input Voltage | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC |
| Output Voltage | 12 | 15 | 20 | 24 | 27 | 36 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single |
| DC output adjustment | 95%~108% rated output voltage adjustable by internal potentiometer | 95%~108% rated output voltage adjustable by internal potentiometer | 95%~108% rated output voltage adjustable by internal potentiometer | 95%~108% rated output voltage adjustable by internal potentiometer | 95%~108% rated output voltage adjustable by internal potentiometer | 95%~108% rated output voltage adjustable by internal potentiometer | 95%~108% rated output voltage adjustable by internal potentiometer |
| Dimensions | 181 x 61.5 x 35 | 181 x 61.5 x 35 | 181 x 61.5 x 35 | 181 x 61.5 x 35 | 181 x 61.5 x 35 | 181 x 61.5 x 35 | 181 x 61.5 x 35 |
| Working Temperature | -30~+50°C (Refer to "Derating Curve") | ||||||
| Safety Standards | UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved | ||||||
| EMC Standards | EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 | ||||||
