Mean Well Mean Well logo

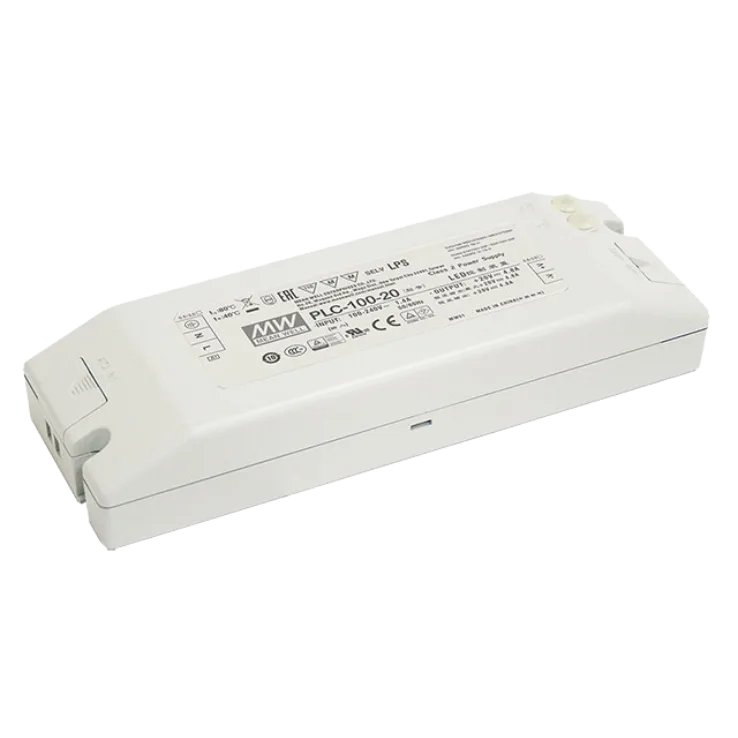

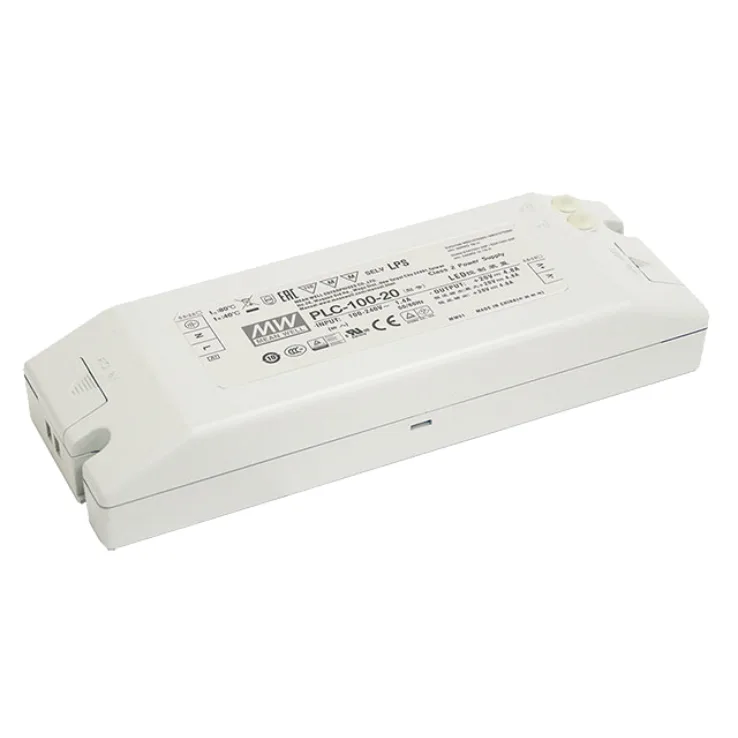

PLC-100 Series Non-dim Constant Voltage LED Drivers 100W

Download Datasheet
Models:
  • PLC-100-12
  • PLC-100-15
  • PLC-100-20
  • PLC-100-24
  • PLC-100-27
  • PLC-100-36
  • PLC-100-48
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

PLC-100 Series Features:

Built-in constant current limiting circuit (C.V. + C.C. mode)

Protections: Short circuit/ Over current/ Over voltage/ Over temperature

Other features:

  • Universal AC input / full range
  • Fully isolated plastic case with screw terminal style of I/O
  • Adjustable output voltage and current level
  • Built-in active PFC function, PF>0.9 for 75% of load or higher
  • High efficiency up to 90%
  • Class 2 power unit / Pass LPS
  • Isolation class II, no F.G.
  • Cooling by free air convection
  • 100% full load burn-in test
  • 2 years warranty
Wattage 100 100 100 100 100 100 100
Input Voltage 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC
Output Voltage 12 15 20 24 27 36 48
Output Voltage Options Single Single Single Single Single Single Single
DC output adjustment 95%~108% rated output voltage adjustable by internal potentiometer 95%~108% rated output voltage adjustable by internal potentiometer 95%~108% rated output voltage adjustable by internal potentiometer 95%~108% rated output voltage adjustable by internal potentiometer 95%~108% rated output voltage adjustable by internal potentiometer 95%~108% rated output voltage adjustable by internal potentiometer 95%~108% rated output voltage adjustable by internal potentiometer
Dimensions 200.5 x 70.5 x 35 200.5 x 70.5 x 35 200.5 x 70.5 x 35 200.5 x 70.5 x 35 200.5 x 70.5 x 35 200.5 x 70.5 x 35 200.5 x 70.5 x 35
Working Temperature -30 ~ +60°C (Refer to "Derating Curve")
Safety Standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, TUV EN60950-1
EMC Standards EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
