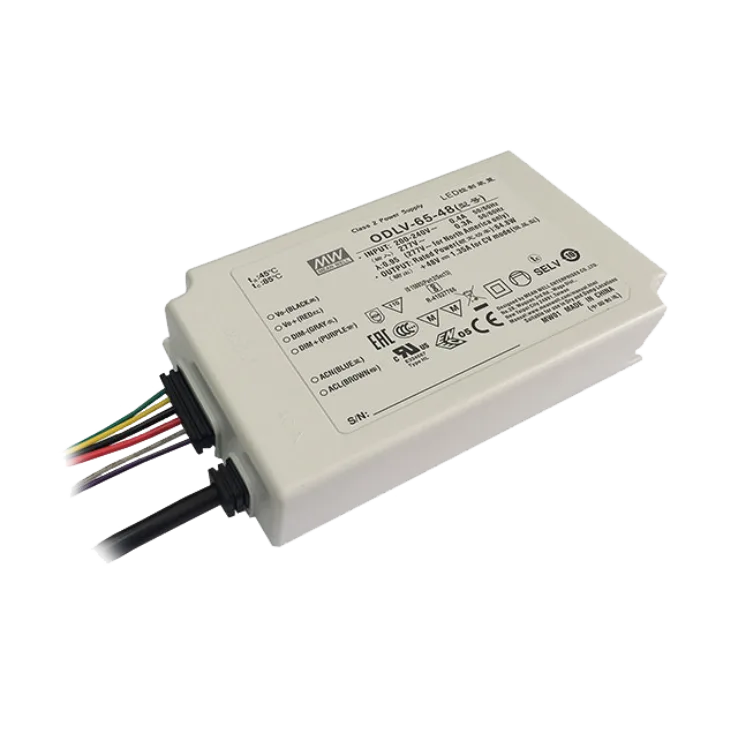

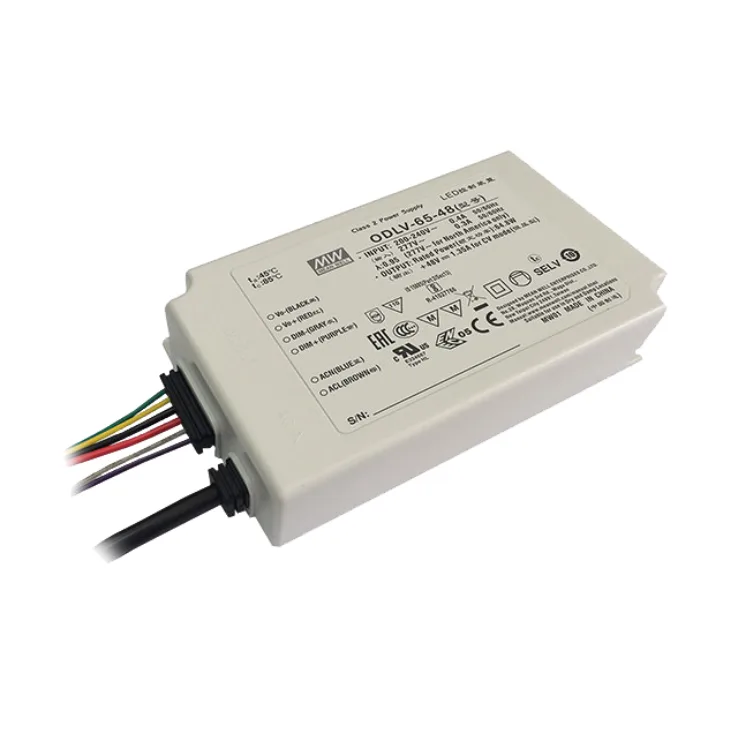

ODLV-65 Series Constant Voltage LED Drivers 50.4–64.8W

Download Datasheet
Models:
  • ODLV-65-12
  • ODLV-65-24
  • ODLV-65-36
  • ODLV-65-48
  • ODLV-65-60
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

ODLV-65 Series Features:

ODLV-65 series is a 65W AC/DC LED driver featuring the constant voltage mode PWM style design. ODLV-65 series operates from 180~295VAC and offers models with different rated voltage ranging between 12V and 60V.

Features:

  • Constant voltage PWM style output with frequency 1KHz
  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption -0.5W(blank type)
  • IP67 rating for indoor or outdoor installations
  • Function options: 2 in 1 dimming (dim-to off);
  • Auxiliary DC output
  • 3 years warranty
Wattage 50.4 57.6 64.8 64.8 64.8
Input Voltage 180~295VAC 180~295VAC 180~295VAC 180~295VAC 180~295VAC
Output Current 4.2 2.4 1.8 1.35 1.08
Output Voltage 12 24 36 48 60
Output Voltage Options 0~100% 0~100% 0~100% 0~100%
Dimensions 121*77*28.5mm (L*W*H) 121*77*28.5mm (L*W*H) 121*77*28.5mm (L*W*H) 121*77*28.5mm (L*W*H) 121*77*28.5mm (L*W*H)
Working Temperature Tcase=-20~+85°C
Safety Standards UL8750(type"HL"),CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independant, EN62384,GB19510.1, GB19510.14; BIS IS15885 (for ODLV-65-12,24,48 only), EAC TP TC 004, IP67approved
