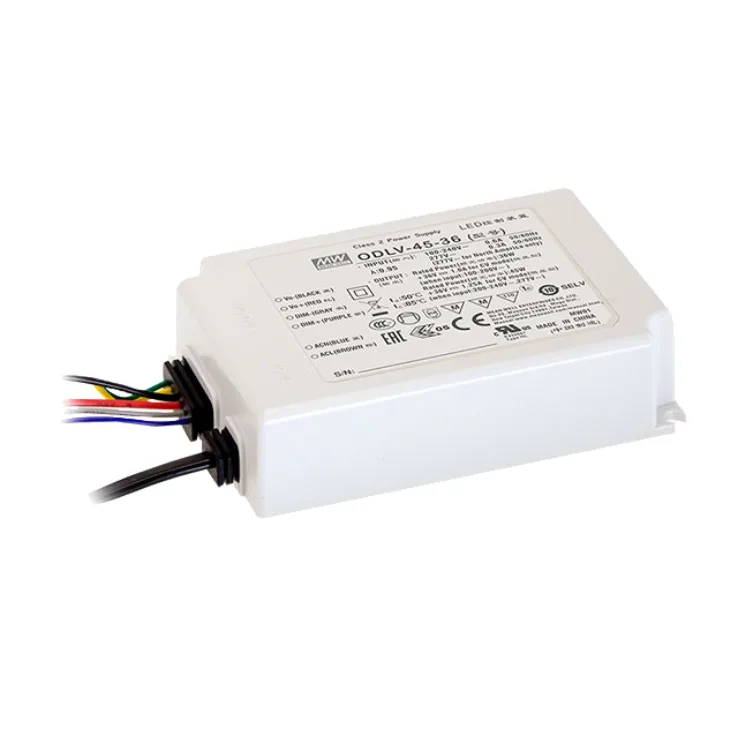

ODLV-45 series Constant Voltage LED Drivers 36–45.12W

Download Datasheet
Models:
  • ODLV-45-12
  • ODLV-45-24
  • ODLV-45-36
  • ODLV-45-48
  • ODLV-45-60
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

ODLV-45 series Features:

ODLV-45 series is a 45W AC/DC LED driver featuring the constant voltage mode PWM style output design. ODLV-45 operates from 90~295 VAC and offers models with different rated voltage ranging between 12V and 60V.

Features

  • Constant Voltage PWM style out with frequency 1KHz
  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption <0.5W(Blank Type)
  • IP67 rating for indoor or outdoor installations
  • Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output
  • 3 years warranty
Wattage 36 45.12 45.12 45.12 45
Input Voltage 90~295 127~417VDC 90~295 127~417VDC 90~295 127~417VDC 90~295 127~417VDC 90~295 127~417VDC
Output Current 3.0 1.88 1.25 0.94 0.75
Output Voltage 12 24V 36 48 60
DC output adjustment 0~100% 0~100% 0~100% 0~100% 0~100%
Dimensions 111*77*28.5mm (L*W*H) 111*77*28.5mm (L*W*H) 111*77*28.5mm (L*W*H) 111*77*28.5mm (L*W*H) 111*77*28.5mm (L*W*H)
Working Temperature Tcase=-20~+85°C
Safety Standards UL8750(type "HL"), CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independant, EN62384, GB19510.1, GB19510.14; BIS IS15885(for ODLV-45-12,24,48 only), EAC TP TC 004, IP67 approved
