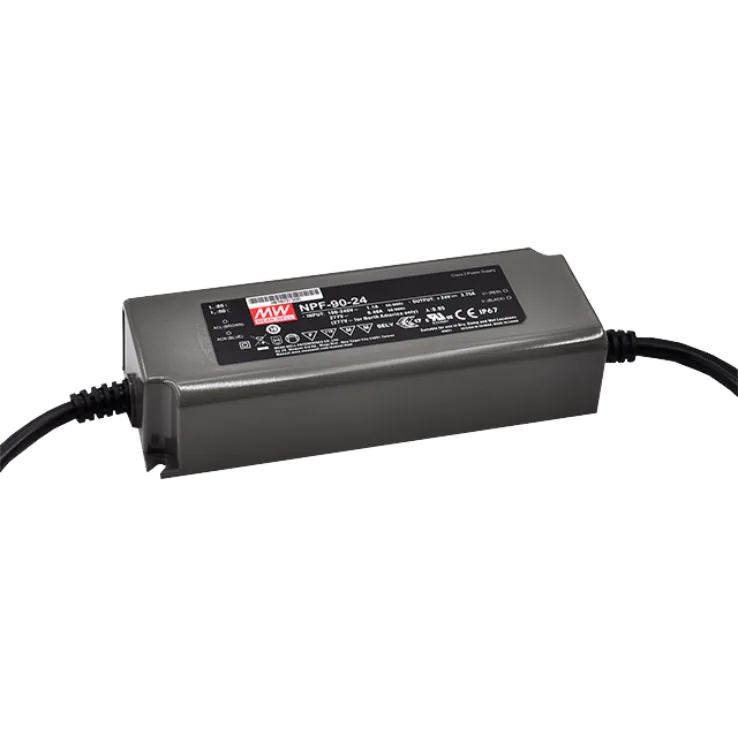

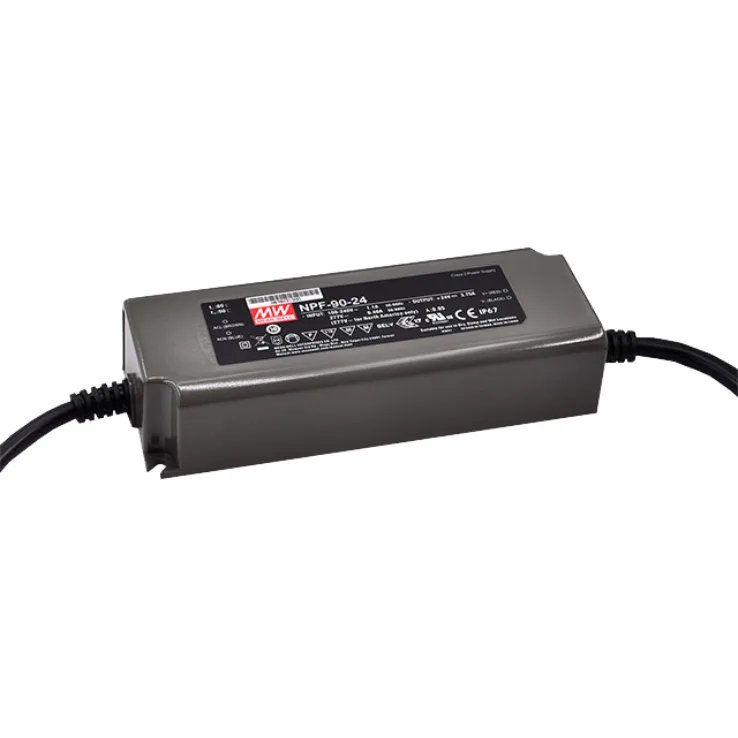

Mean Well NPF-90 Series Non-dim Constant Voltage LED Drivers 90W

Download Datasheet
Models:
  • NPF-90-12
  • NPF-90-15
  • NPF-90-20
  • NPF-90-24
  • NPF-90-36
  • NPF-90-42
  • NPF-90-48
  • NPF-90-54
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

NPF-90 Series Features:

Fully encapsulated with IP67 level

Protections: Short circuit/ Over Current/ Over voltage/ Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full Range
  • High efficiency up to 91%
  • Cooling by free air convection
  • Built-in active PFC function
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Suitable for dry, damp, wet location
  • No load power consumption <0.15W
  • 5 years warranty
Wattage 90 90 90 90 90 90 90 90
Input Voltage 90-305VAC 90-305VAC 90-305VAC 90-305VAC 90-305VAC 90-305VAC 90-305VAC 90-305VAC
Output Voltage 12 15 20 24 36 42 48 54
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 7.2-12V 9-15V 12-20V 14.4-24V 21.6-36V 25.2-42V 28.8-48V 32.4-54V
Dimensions 171x 63x 37.5 171x 63x 37.5 171x 63x 37.5 171x 63x 37.5 171x 63x 37.5 171x 63x 37.5 171x 63x 37.5 171x 63x 37.5
Working Temperature -40-+80B0C
Safety Standards UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1
EMC Standards Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, EN55024, light industry level(surge L-N : 2KV), criteria A.
