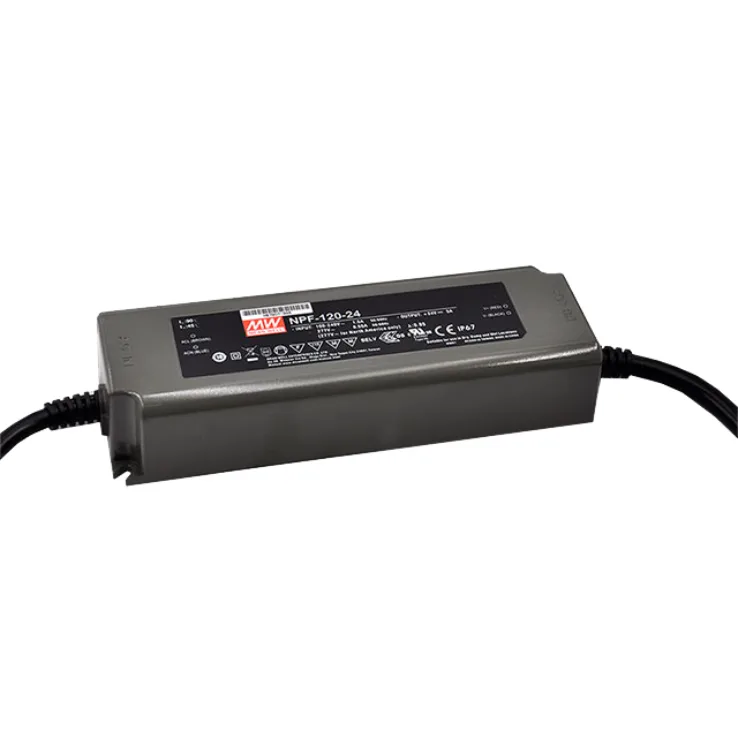

NPF-120 Series Non-dim Constant Voltage LED Drivers 120W

Models:	NPF-120-12 NPF-120-15 NPF-120-20 NPF-120-24 NPF-120-30 NPF-120-36 NPF-120-42 NPF-120-48 NPF-120-54
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

NPF-120 Series Features:

Fully encapsulated with IP67 level

Protections: Short circuit/ Over Current/ Over voltage/ Over temperature

Other features:

Spec	NPF-120-12	NPF-120-15	NPF-120-20	NPF-120-24	NPF-120-30	NPF-120-36	NPF-120-42	NPF-120-48	NPF-120-54
Wattage	120	120	120	120	120	120	120	120	120
Input Voltage	90-305VAC	90-305VAC	90-305VAC	90-305VAC	90-305VAC	90-305VAC	90-305VAC	90-305VAC	90-305VAC
Output Voltage	12	15	20	24	30	36	42	48	54
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	7.2-12V	9-15V	12-20V	14.4-24V	18-30V	21.6-36V	25.2-42V	28.8-48V	32.4-54V
Dimensions	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5	191x 63x 37.5
Working Temperature	-40-+80°C
Safety Standards	UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A.
