Mean Well Mean Well logo

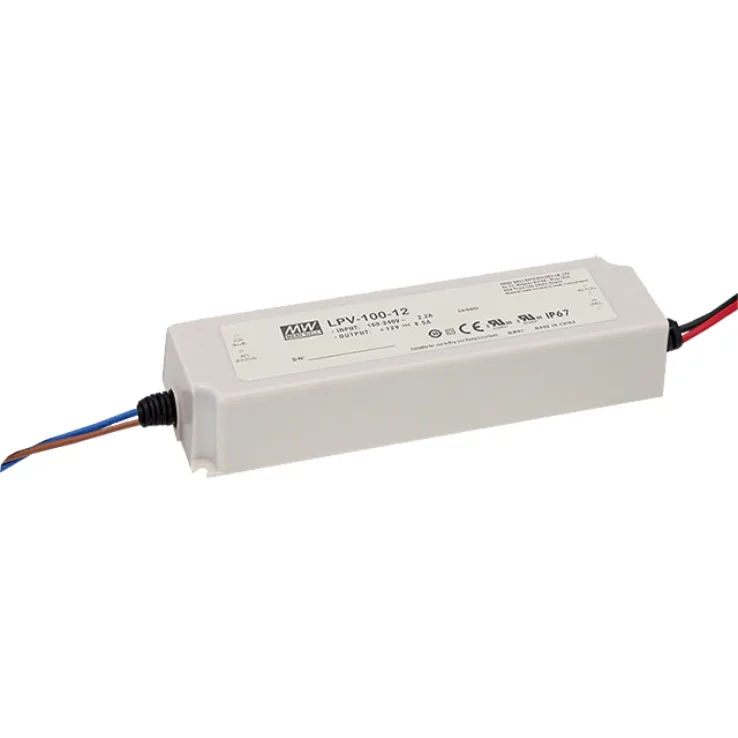

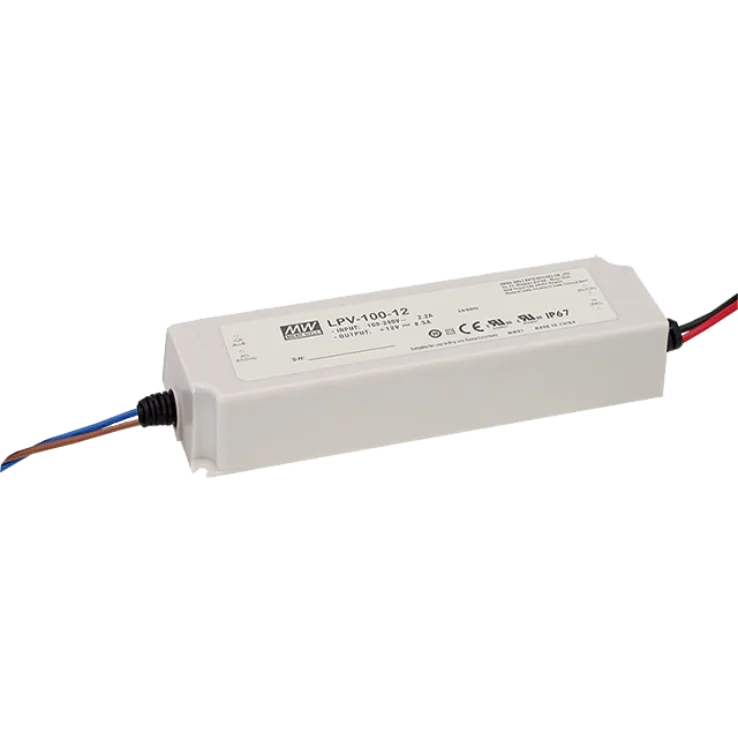

LPV-100 Series Non-dim Constant Voltage LED Drivers 60–100W

Download Datasheet
Models:
  • LPV-100-5
  • LPV-100-12
  • LPV-100-15
  • LPV-100-24
  • LPV-100-36
  • LPV-100-48
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

LPV-100 Series Features:

Constant Voltage

Fully encapsulated with IP67 level

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Isolation class II, no F.G.
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
Wattage 60 100 100 100 100 100
Input Voltage 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC
Output Voltage 5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A N/A
Dimensions 190 x 52 x 37 190 x 52 x 37 190 x 52 x 37 190 x 52 x 37 190 x 52 x 37 190 x 52 x 37
Working Temperature -30~+70°C
Safety Standards Design refer to TUV EN60950-1, EN61347-2-13
EMC Standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
