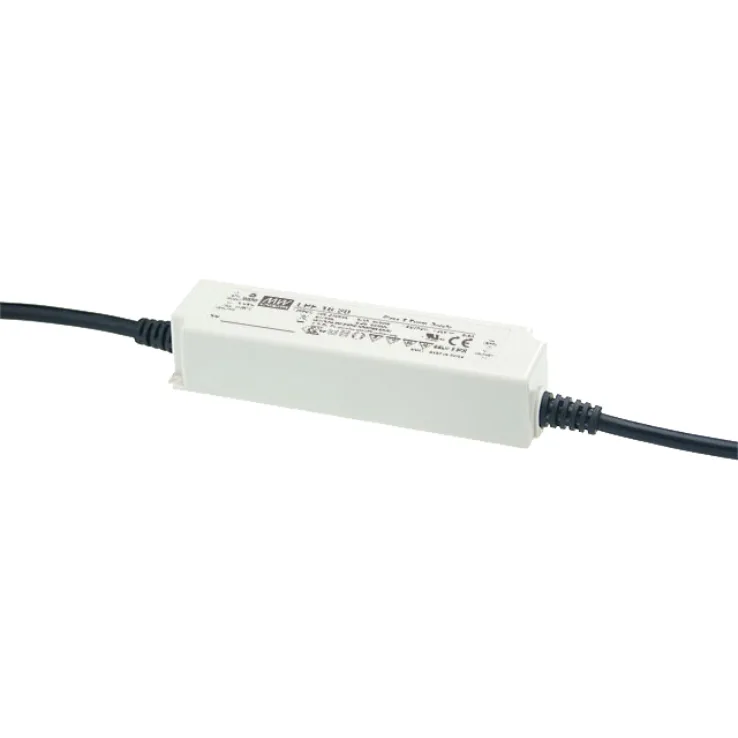

LPF-16D Series 0-10V / 1-10V Dimmable Constant Voltage LED Drivers 16W

Models:	LPF-16D-12 LPF-16D-15 LPF-16D-20 LPF-16D-24 LPF-16D-30 LPF-16D-36 LPF-16D-42 LPF-16D-48 LPF-16D-54
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

LPF-16D Series Features:

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)

Built-in active PFC function

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

Spec	LPF-16D-12	LPF-16D-15	LPF-16D-20	LPF-16D-24	LPF-16D-30	LPF-16D-36	LPF-16D-42	LPF-16D-48	LPF-16D-54
Wattage	16	16	16	16	16	16	16	16	16
Input Voltage	90~305VAC; 127~431VDC	90~305VAC; 127~431VDC	90~305VAC; 127~431VDC	90~305VAC; 127~431VDC	90~305VAC; 127~431VDC	90~305VAC; 127~431VDC	90~305VAC; 127~431VDC	90~305VAC; 127~431VDC	90~305VAC; 127~431VDC
Output Voltage	12	15	20	24	30	36	42	48	54
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Dimensions	148 x 40 x 30		148 x 40 x 30	148 x 40 x 30	148 x 40 x 30	148 x 40 x 30	148 x 40 x 30	148 x 40 x 30	148 x 40 x 30
Working Temperature	-40~+70°C (refer to output derating curve)
Safety Standards	Design refer to UL8750 ENEC EN61347-1, EN61347-2-13
EMC Standards	EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
