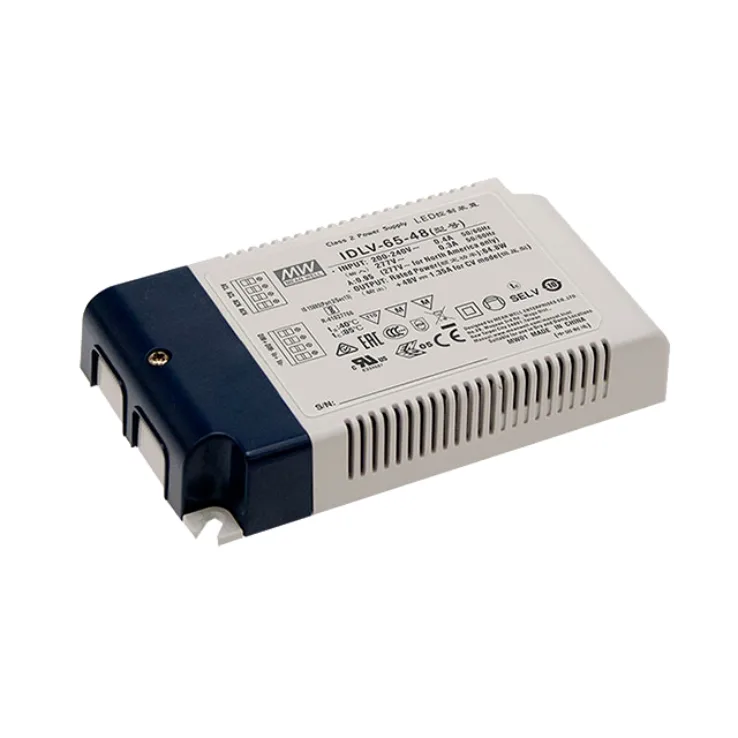

IDLV-65 Series 0-10V / 1-10V Dimmable Constant Voltage LED Drivers 50–65W

Models:	IDLV-65-12 IDLV-65-24 IDLV-65-36 IDLV-65-48 IDLV-65-60
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

IDLV-65 Series Features:

Constant Voltage PWM style output with frequency 1KHz

Protections: Short circuit; Over Current

Other features:

Spec	IDLV-65-12	IDLV-65-24	IDLV-65-36	IDLV-65-48	IDLV-65-60
Wattage	50	58	65	65	65
Input Voltage	180-295VAC	180-295VAC	180-295VAC	180-295VAC	180-295VAC
Output Voltage	12	24	36	48	60
Output Voltage Options	Single	Single	Single	Single	Single
Dimensions	130x 75x 25	130x 75x 25	130x 75x 25	130x 75x 25	130x 75x 25
Working Temperature	-20-+85°C
Safety Standards	UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV)
