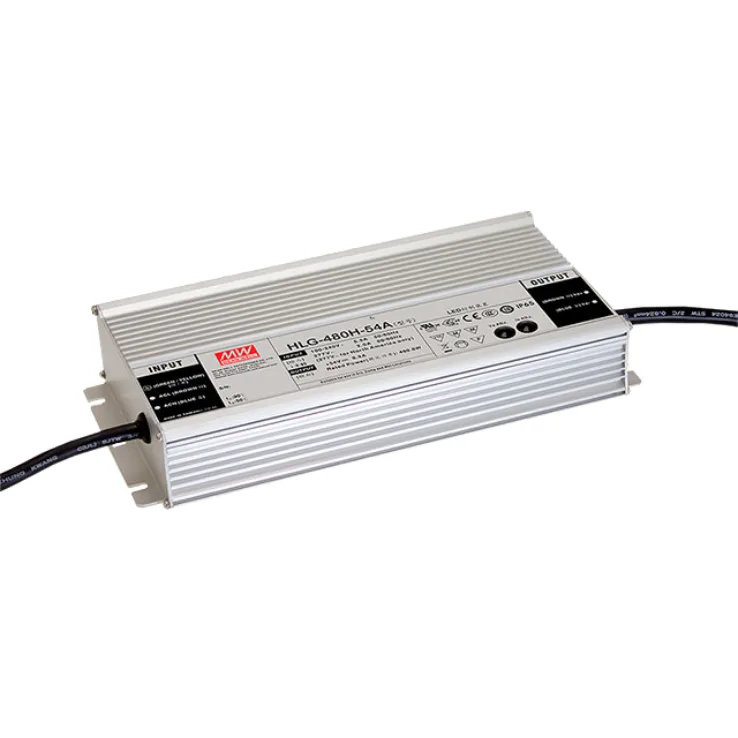

HLG-480H-A Series Non-dim Constant Voltage LED Drivers 478.8–480W

Models:	HLG-480H-24A HLG-480H-30A HLG-480H-36A HLG-480H-42A HLG-480H-48A HLG-480H-54A
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

HLG-480H-A Series Features:

A Type: Io and Vo adjustable through built-in potentiometer

B Type: 3 in 1 dimming function (0~10VDC, 10V PWM signal and resistance)

Metal housing with class I design

Protections: Short circuit / Over voltage / Over Current / Over temperature

Other features:

IP67 / IP65 design for indoor or outdoor installations
Constant Voltage mode output design
Function options : output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimming
Built-in active PFC function
Typical lifetime >62000 hours
7 years warranty

Spec	HLG-480H-24A	HLG-480H-30A	HLG-480H-36A	HLG-480H-42A	HLG-480H-48A	HLG-480H-54A
Wattage	480	480	478.8	478.8	480	480
Input Voltage	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC
Output Voltage	24	30	36	42	48	54
Output Voltage Options	Single	Single	Single	Single	Single	Single
Dimensions	262x 125x 43.8	262x 125x 43.8	262x 125x 43.8	262x 125x 43.8	262x 125x 43.8	262x 125x 43.8
Working Temperature	-40~+80°C
Safety Standards	UL8750 (typeb
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
