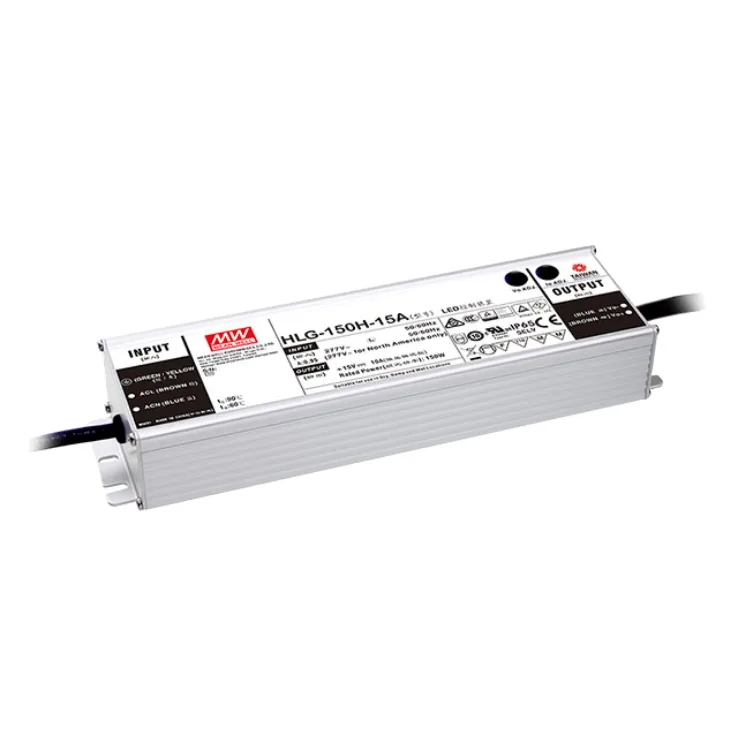

HLG-150H-A Series Non-dim Constant Voltage LED Drivers 150W

Download Datasheet
Models:
  • HLG-150H-12A
  • HLG-150H-15A
  • HLG-150H-20A
  • HLG-150H-24A
  • HLG-150H-30A
  • HLG-150H-36A
  • HLG-150H-42A
  • HLG-150H-48A
  • HLG-150H-54A
Manufacturer: MEAN WELL
Type: Constant Voltage LED Drivers

HLG-150H-A Series Features:

IP67 design for indoor or outdoor installations

Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)

7 years warranty

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • High efficiency up to 95%
  • Output current adjustable through output cable or internal potentiometer
  • Cooling by free air convection
  • Suitable for LED lighting and street lighting applications
  • Meet 4KV surge immunity level (IEC61000-4-5)
  • Optional CQC models available
  • Built-in active PFC, PF>0.9 for 60% of load or higher
Wattage 150 150 150 150 150 150 150 150 150
Input Voltage 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC
Output Voltage 12 15 20 24 30 36 42 48 54
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage +/-10% rated output voltage
Working Temperature -40~+70°C (Refer to "Derating Curve")
Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1
EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
