Mean Well Mean Well logo

GSV60 series Constant Voltage LED Drivers 50–60W

Download Datasheet
Models:

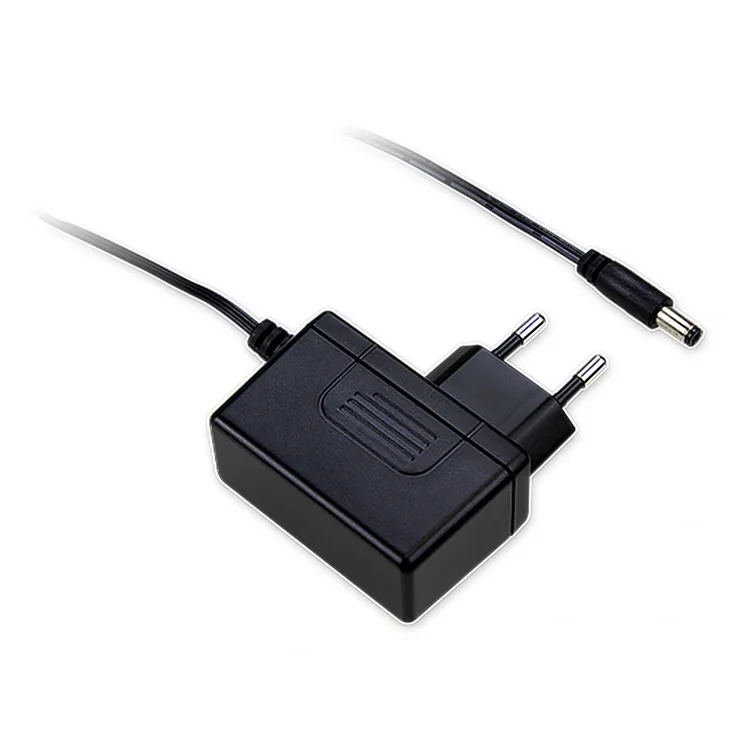

  • GSV60E12-P1J
  • GSV60E24-P1J
  • GSV60E48-P1J

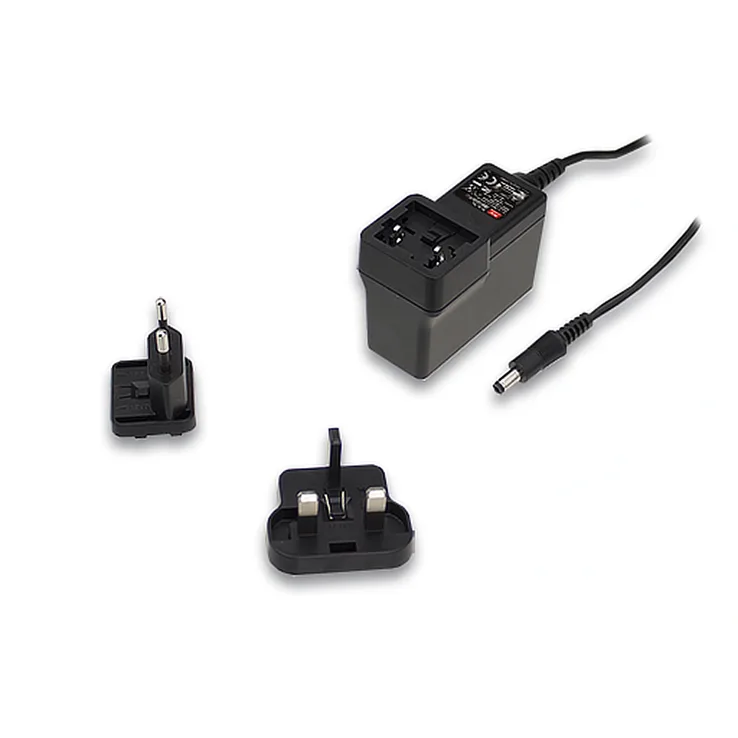

  • GSV60I12-P1J
  • GSV60I24-P1J
  • GSV60I48-P1J
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

GSV60 series Features:

GSV60 series is a 60W external wall-mounted LED power supply with PFC function.

Features:

  • AC 180~264V input
  • Class II/2 power unit, no FG
  • Built-in active PFC function with EN61347-1 regulation
  • Constant voltage design
  • Protections: Short circuit/ Over load/ Over voltage
  • Cooling by free air convection
  • No load power consumption <0.5W
  • 3 years warranty
Wattage 50 60 60 50 60 60
Input Voltage 180~264VAC 180~264VAC 180~264VAC 180~264VAC 180~264VAC 180~264VAC
Output Current 4.16A 2.5 1.25 4.16 2.5 1.25
Output Voltage 12V 24 48 12 24 48
Dimensions 75.5*32*47.5mm 75.5*32*47.5mm 75.5*32*47.5mm 75.5*39.1*56.2mm 75.5*39.1*56.2mm 75.5*39.1*56.2mm
Working Temperature -20~40°C
Safety Standards LVD BS EN/EN61347-1, BS EN/EN61347-2-13, EAC, TP TC 004 approved
EMC Standards Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (100% load); BS EN/EN61000-3-3, EACTP TC 020
