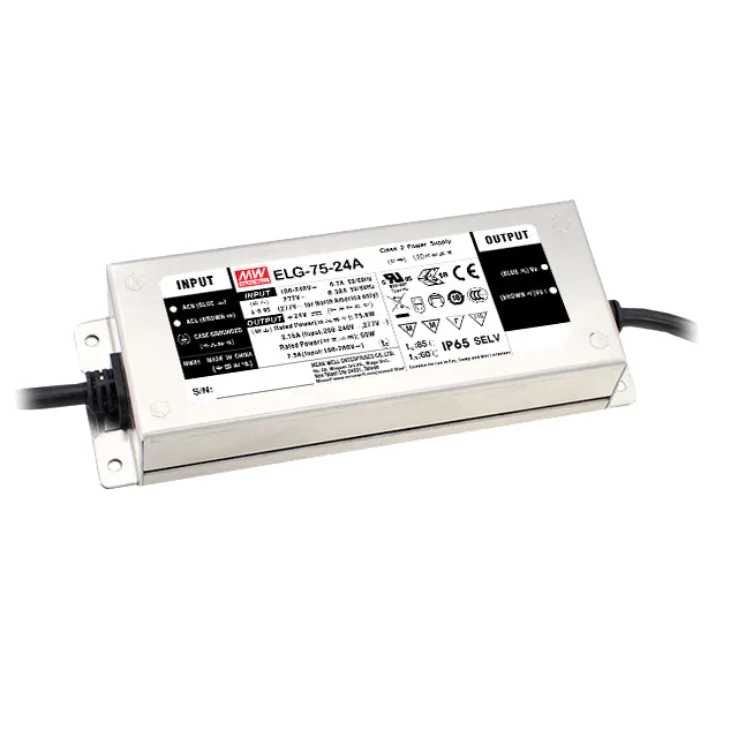

ELG-75- DA-3Y Series Constant Voltage LED Drivers 60–76.8W

Models:	ELG-75-12DA-3Y ELG-75-24DA-3Y ELG-75-36DA-3Y ELG-75-42DA-3Y ELG-75-48DA-3Y
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

ELG-75- DA-3Y Series Features:

ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V.

Features:

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit
No load/Standby power consumption <0.5W
IP67/IP65 rating for indoor or outside installations
Function options: output adjustable via potentiometer;
3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime >50000 hours
5 years warranty

Spec	ELG-75-12DA-3Y	ELG-75-24DA-3Y	ELG-75-36DA-3Y	ELG-75-42DA-3Y	ELG-75-48DA-3Y
Wattage	60	75.6	75.6	75.6	76.8
Input Voltage	100~305VAC	100~305VAC	100~305VAC	100~305VAC	100~305VAC
Output Current	5	3.15	2.1	1.8	1.6
Output Voltage	12	24	36	42	48
Output Voltage Options	6~12	12~24	18~36	21~42	24~48
Dimensions	1806335.5mm (LWH)	1806335.5mm (LWH)	1806335.5mm (LWH)	1806335.5mm (LWH)	1806335.5mm (LWH)
Working Temperature	Tcase=-40~+85°C
Safety Standards	UL8750(type"HL"), CSA C22.2 No.250.13-12; IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-12 independant, EN62384; EAC TP TC 004; BIS IS15885 (for 12B/24B/36A/42A/48A only); IP65 or IP67; GB19510.1, GB19510.14; KC61347-1, KC61347-2-13 approved
