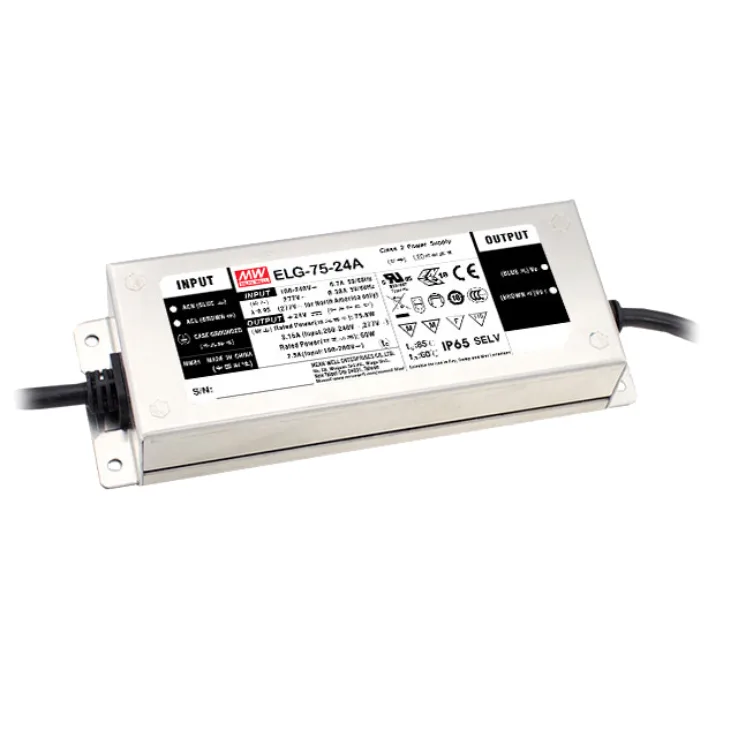

ELG-75- B-3Y Series Constant Voltage LED Drivers 60–76.8W

Download Datasheet
Models:
  • ELG-75-12B-3Y
  • ELG-75-24B-3Y
  • ELG-75-36B-3Y
  • ELG-75-42B-3Y
  • ELG-75-48B-3Y
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

ELG-75- B-3Y Series Features:

ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100~305VAC and offers models with different rated voltage ranging between 12V and 48V.

Features:

  • Constant Voltage + Constant Current mode output
  • Metal housing design with functional Ground
  • Built-in active PFC function
  • Class 2 power unit
  • No load/Standby power consumption <0.5W
  • IP67/IP65 rating for indoor or outside installations
  • Function options: output adjustable via potentiometer;
  • 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
  • Typical lifetime >50000 hours
  • 5 years warranty
Wattage 60 75.6 75.6 75.6 76.8
Input Voltage 100~305VAC 100~305VAC 100~305VAC 100~305VAC 100~305VAC
Output Current 5 3.15 2.1 1.8 1.6
Output Voltage 12 24 36 42 48
Output Voltage Options 6~12 12~24 18~36 21~42 24~48
Dimensions 180*63*35.5mm (L*W*H) 180*63*35.5mm (L*W*H) 180*63*35.5mm (L*W*H) 180*63*35.5mm (L*W*H) 180*63*35.5mm (L*W*H)
Working Temperature Tcase=-40~+85°C
Safety Standards UL8750(type"HL"), CSA C22.2 No.250.13-12; IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-12 independant, EN62384; EAC TP TC 004; BIS IS15885 (for 12B/24B/36A/42A/48A only); IP65 or IP67; GB19510.1, GB19510.14; KC61347-1, KC61347-2-13 approved
