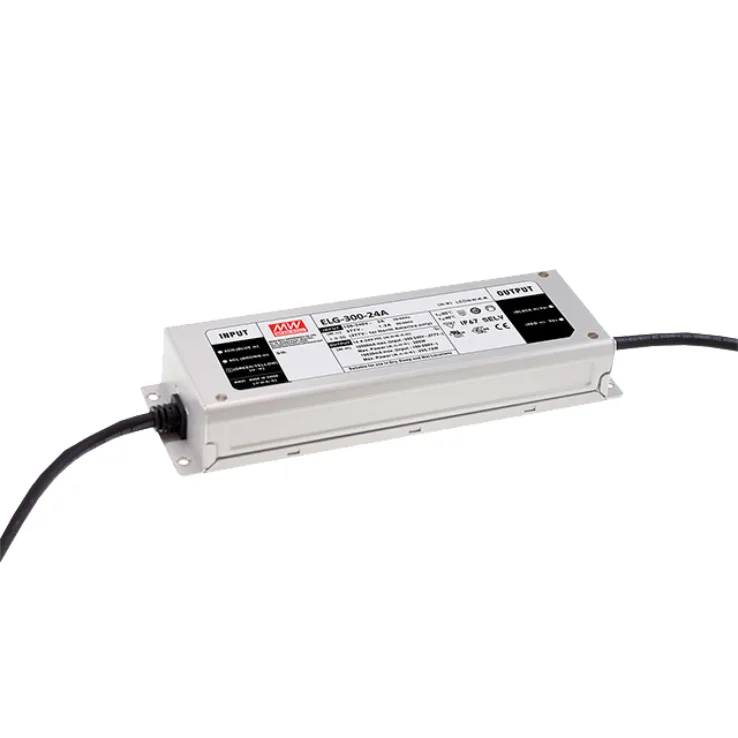

Mean Well ELG-300- A Series Non-dim Constant Voltage LED Drivers 264–300W

Download Datasheet
Models:
  • ELG-300-12A-3Y
  • ELG-300-24A-3Y
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

ELG-300- A Series Features:

ELG-300 series is a 300W LED driver featuring with constant current and constant voltage mode design. ELG-300 operates from 100~305VAC and offers CV mode or CC mode applications.

Features:

  • Constant Voltage + Constant Current mode output
  • Protection Functions: OCP, SCP, OVP, OTP
  • IP67 rating for indoor or outdoor installations
  • Output adjustable via potentiometer
  • Typical lifetime >50000 hours
  • 5 years warranty
Wattage 264 300
Input Voltage 100~305 100~305
Output Current 22 12.5
Output Voltage 12 24
Output Voltage Options 11.2~12.8 22.4~25.6
Dimensions 246*77*39.5mm (L*W*H) 246*77*39.5mm (L*W*H)
Working Temperature Tcase=-40~+85°C
Safety Standards UL8750 (type"HL")(Ecept for 12 V), CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13 independant, EN62384; EAC TP TC 004; GB19510.1, GB19510.14; KC61347-2-13; IS15855(Part2/Sec13), IP67 approved
