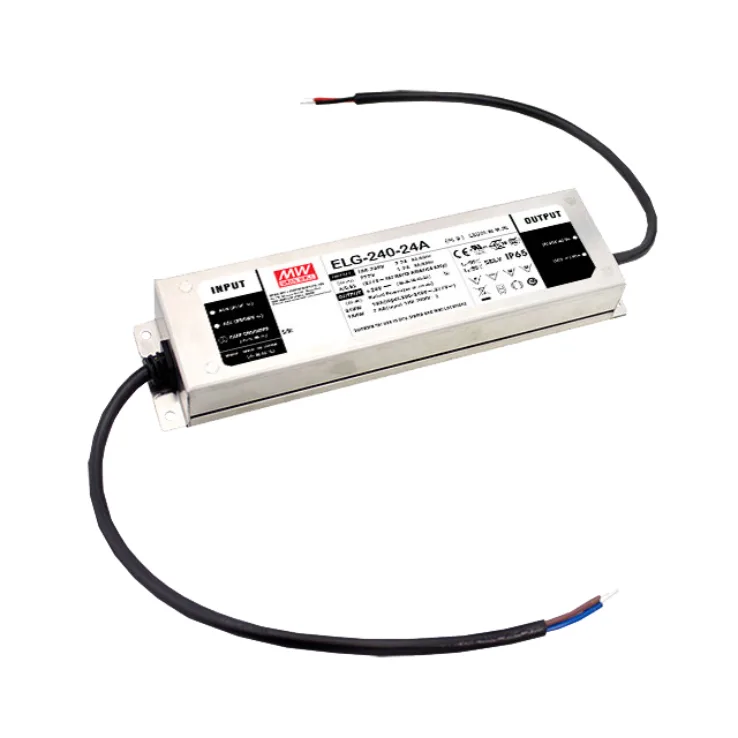

ELG-240-B-3Y Series 0-10V / 1-10V Dimmable Constant Voltage LED Drivers 240W

Models:	ELG-240-24B-3Y ELG-240-36B-3Y ELG-240-42B-3Y ELG-240-48B-3Y ELG-240-54B-3Y
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

ELG-240-B-3Y Series Features:

Constant current mode output

Metal housing design

Protections: Short circuit/ Over Voltage/ Over temperature

Other features:

Spec	ELG-240-24B-3Y	ELG-240-36B-3Y	ELG-240-42B-3Y	ELG-240-48B-3Y	ELG-240-54B-3Y
Wattage	240	240	240	240	240
Input Voltage	100-305VAC 142-431VDC	100-305VAC 142-431VDC	100-305VAC 142-431VDC	100-305VAC 142-431VDC	100-305VAC 142-431VDC
Output Voltage	24	36	42	48	54
Output Voltage Options	Single	Single	Single	Single	Single
DC output adjustment	22.4-25.6V(A type only)	18-36V (A type only)	21-42V (A type only)	24-48V (A type only)	27-54V (A type only)
Dimensions	244x 71x 37.5	244x 71x 37.5	244x 71x 37.5	244x 71x 37.5	244x 71x 37.5
Working Temperature	-40~+90°C
Safety Standards	UL8750 (typeb
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3,GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)
