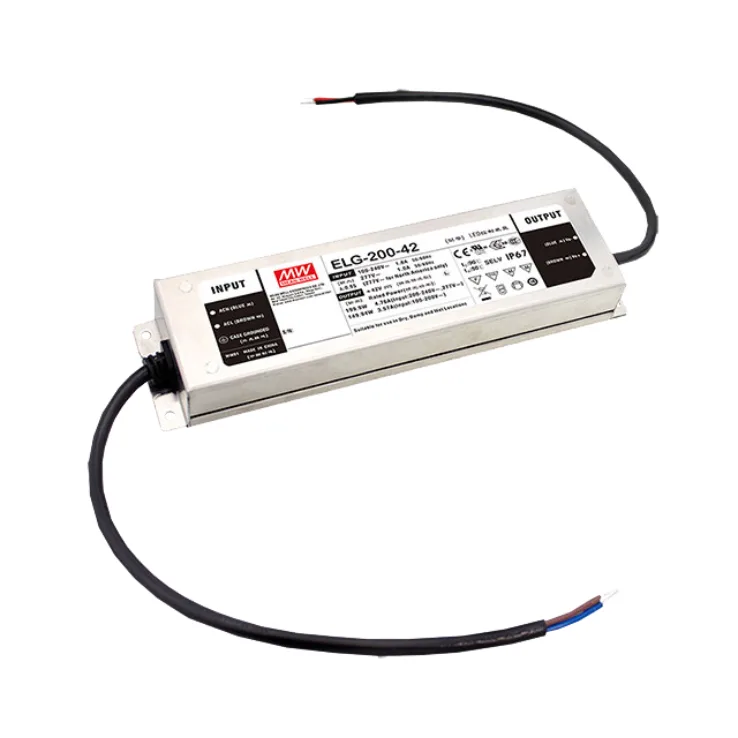

ELG-200-A-3Y Series Non-dim Constant Voltage LED Drivers 192–200W

Models:	ELG-200-12A-3Y ELG-200-24A-3Y ELG-200-36A-3Y ELG-200-42A-3Y ELG-200-48A-3Y ELG-200-54A-3Y
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

ELG-200-A-3Y Series Features:

Constant Current + Constant Voltage mode output

Metal housing design with functional ground

Protections: Short Circuit/ Over Voltage/ Over Temperature/ Over Current

Other features:

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; Dali
Built-in active PFC function
No load/standby power consumption <0.5W
IP67 / IP65 rated design for indoor or outdoor installations
Typical lifetime >50000 hours
5 years warranty

Spec	ELG-200-12A-3Y	ELG-200-24A-3Y	ELG-200-36A-3Y	ELG-200-42A-3Y	ELG-200-48A-3Y	ELG-200-54A-3Y
Wattage	192	200	200	200	200	200
Input Voltage	100-305VAC 142-431VDC	100-305VAC 142-431VDC	100-305VAC 142-431VDC	100-305VAC 142-431VDC	100-305VAC 142-431VDC	100-305VAC 142-431VDC
Output Voltage	12	24	36	42	48	54
Output Voltage Options	Single	Single	Single	Single	Single	Single
DC output adjustment	11.2-12.8V(A type only)	22.4-25.6V(A type only)	33.5-38.5V (A type only)	39-45V (A type only)	44.8-51.2V (A type only)	50-57V (A type only)
Dimensions	244x 71x 37.5	244x 71x 37.5	244x 71x 37.5	244x 71x 37.5	244x 71x 37.5	244x 71x 37.5
Working Temperature	-40~+90°C
Safety Standards	UL8750 (typeb
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3,GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)
