Mean Well Mean Well logo

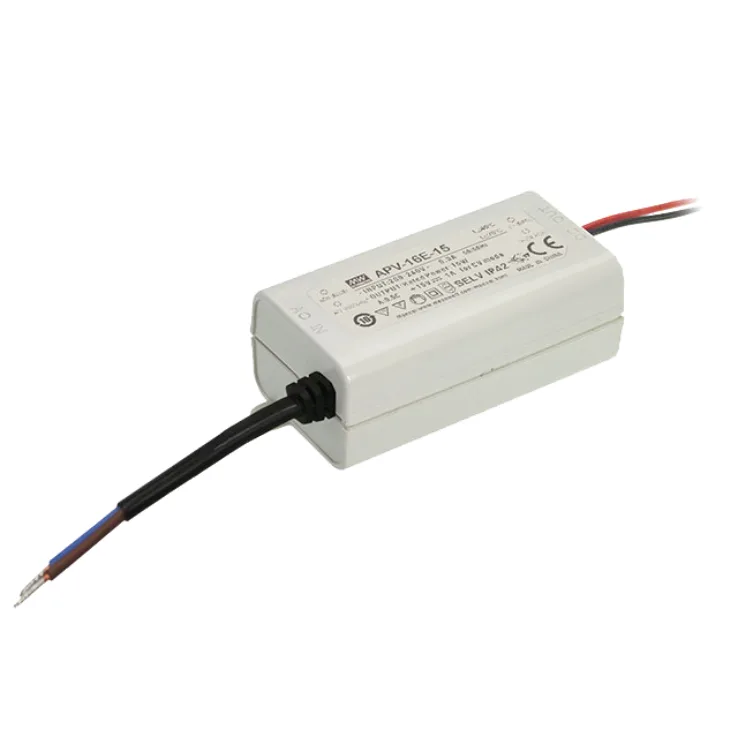

APV-16E Series Non-dim Constant Voltage LED Drivers 13–16W

Download Datasheet
Models:
  • APV-16E-5
  • APV-16E-12
  • APV-16E-15
  • APV-16E-24
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

APV-16E Series Features:

Constant Current

Fully isolated plastic case

Protections: Short circuit

Other features:

  • Small and compact size
  • No load power consumption <0.5W
  • IP42 design
  • Class II power unit, no FG
  • Cooling by free air convection
  • PF>0.5
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
Wattage 13 15 15 16
Input Voltage 180~264VAC; 254~370VDC 180~264VAC; 254~370VDC 180~264VAC; 254~370VDC 180~264VAC; 254~370VDC
Output Voltage 5 12 15 24
Output Voltage Options Single Single Single Single
Dimensions 77 x 40 x 29 77 x 40 x 29 77 x 40 x 29 77 x 40 x 29
Working Temperature -30~+70°C
Safety Standards IP42 approved; design refer to EN61347-1, EN61347-2-13
EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A
