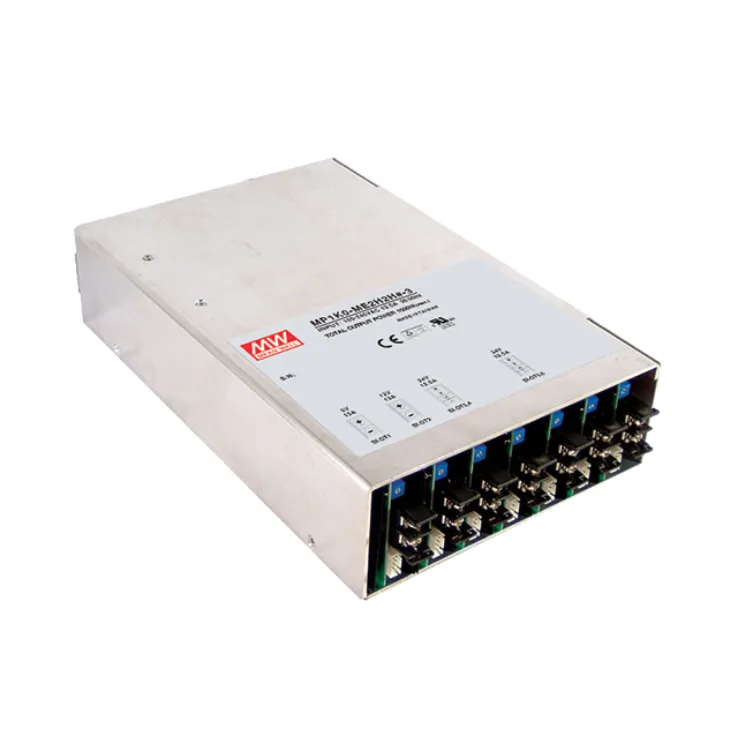

MP1K0 Series Modular Power Supplies

Download Datasheet
Models:
  • MP1K0
Manufacturer: MEAN WELL
Type: Modular Power Supplies

MP1K0 Series Features:

Switching power supplies with modular design that consists of 2 stages; Front end PFC and output modules. Using zero voltage switching technology to realize the power factor correction, the line input is rectified into high DC voltage by the front end PFC stage, and then the DC output modules will transfer the operating voltage into all kinds of DC output voltages from 1.6V to 53V.

Features:

  • Universal input voltage
  • Uses ZVS technology to reduce power dissipation and improve efficiency
  • Large range of output configurations available
  • Remote control on each module
  • Remote sense on MS-75, 150 & 300 modules
  • Built in active PFC, PF>0.95
  • Built in parallel function on MS-300
  • Fan alarm function
  • Forced air cooling

For use with:

MS-75and MS-150 Series

MS210 and MS-300 Series

MS-360 and MD-100 Series

Working Temperature -20~70°C
Safety Standards UL60950-1, TUV EN60950-1, EN60601-1 approved
EMC Standards Complies to EN55022 Class B, EN6100-3, -2,3, EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-1, EN61204-3 Light Industrial Level, Criteria A
