MEAN WELL

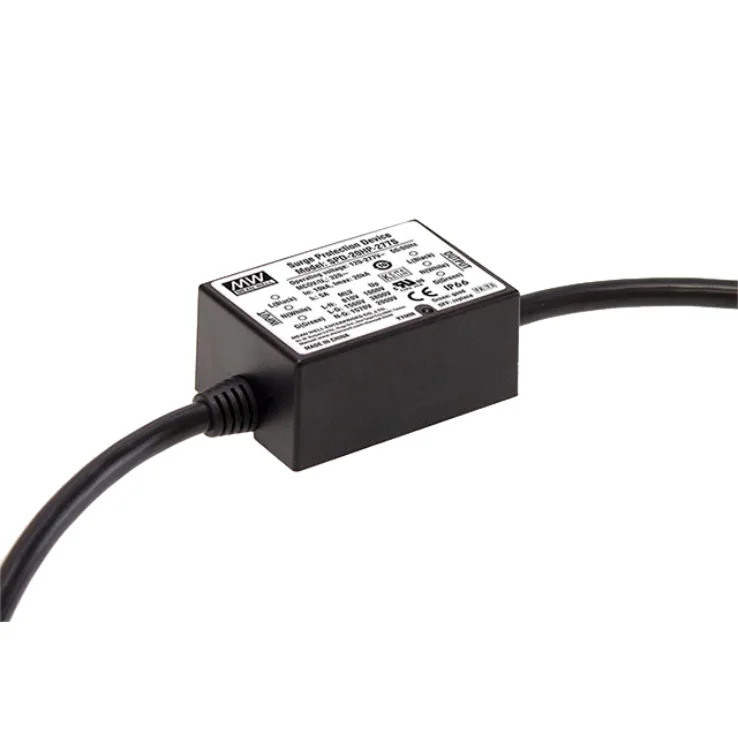

SPD-20HP series LED Accessories W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | LED Accessories |
SPD-20HP series Features:

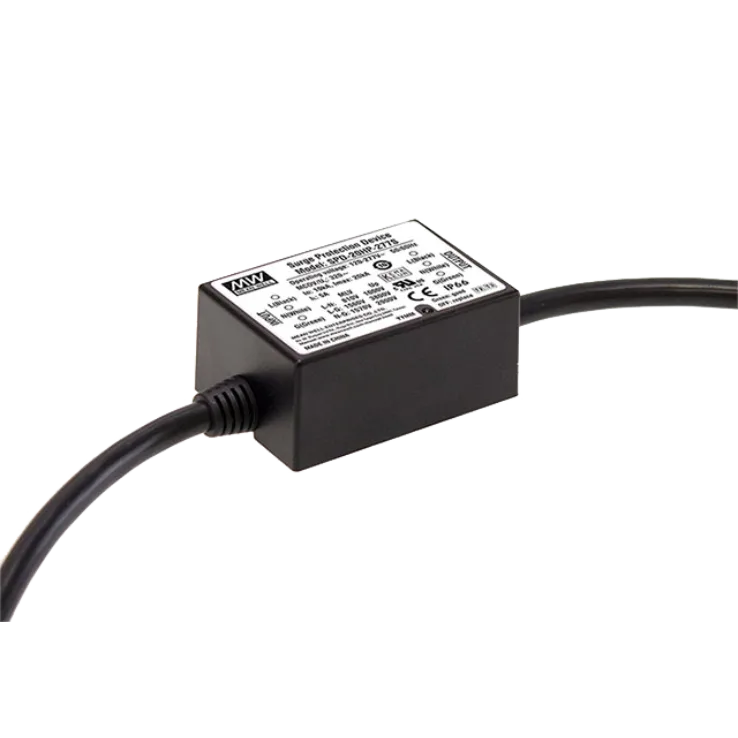

SPD-20HP thermally protected Surge Protective Device is a self-protected device which is specially designed to be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection.
Features:
- Series connection style
- UL1449 type 4 component assemblies
- Line to Ground & Line to Line protected
- 20kA maximum discharge current (I max), 8/20us
- Low MLV/U
- Thermally protected
- Double insulation cable wire
- LED status indicator
- IP66 design for indoor or outdoor installations
- Suitable for LED driver surge protection with class I insulation
- 20KV surge protection capability
| Input Voltage | 120~277VAC | 347~480VAC | |
|---|---|---|---|
| Output Current | 5A | 5A | |
| Output Voltage | L-N:810V, L-G:1560G, N-G:1570V | L-N:1400V, L-G:1560V, N-G:1570V | |
| Dimensions | 71.6*67.7*32mm | 71.6*67.7*32mm | |
| Working Temperature | -40~+75°C | ||
| Safety Standards | UL1449(Fourth Edition), EN6164311, EAC TPTC 004 approved | UL1449(Fourth Edition), EAC TP TC 004 approved | |
